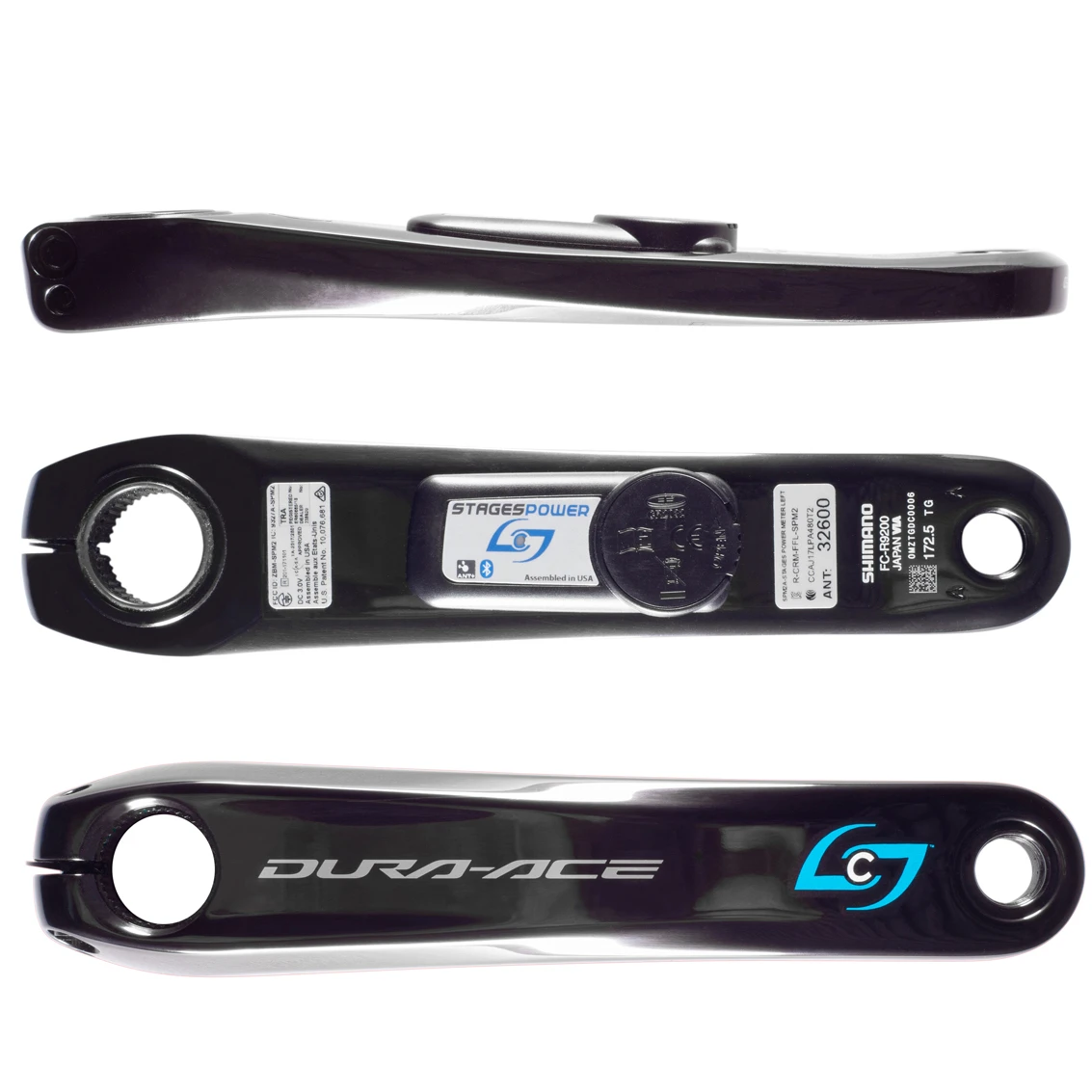

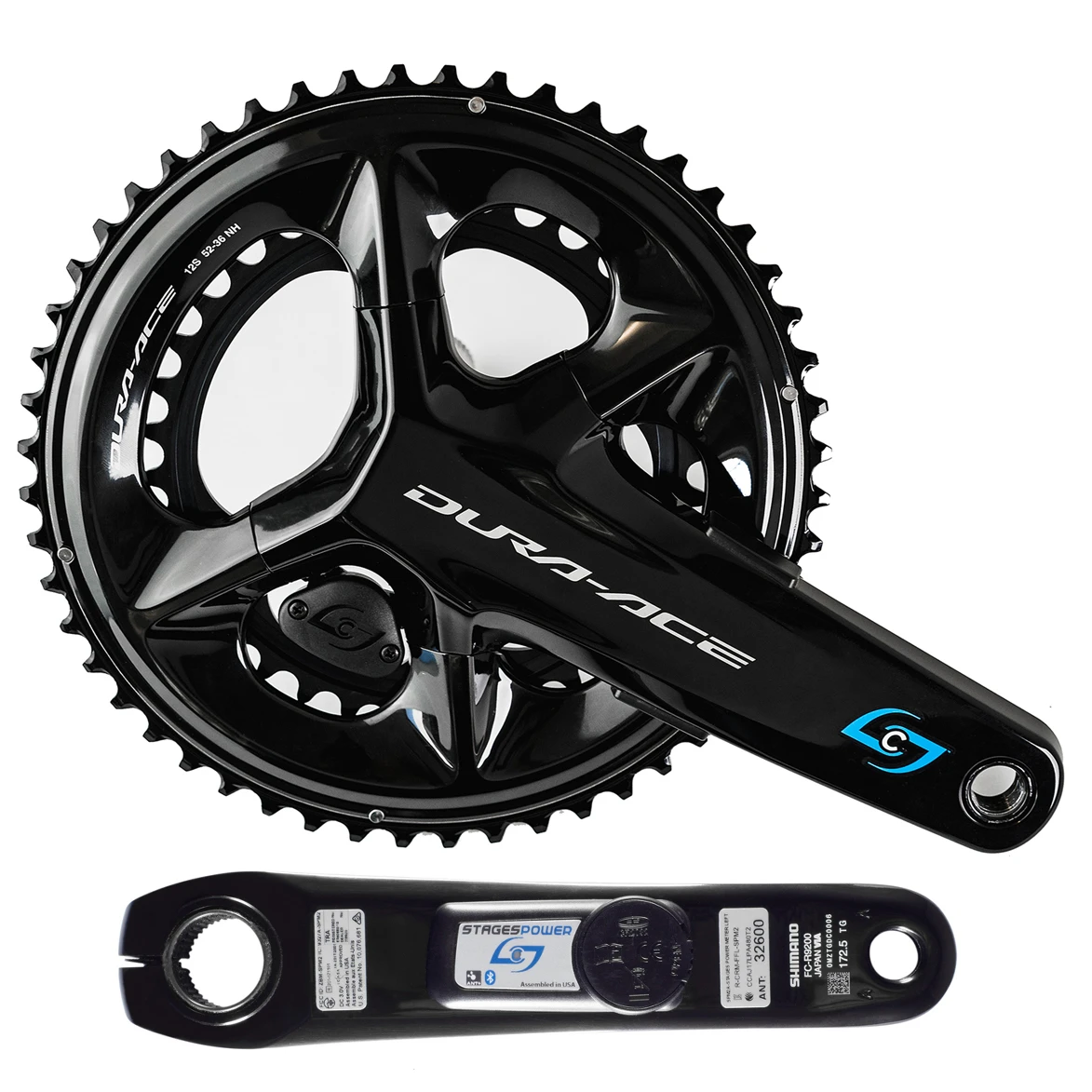

Stages Cycling Power LR Powermeter | Crankset By Shimano – Dura Ace R9200 | 2×12-Voudig – Zwart

Technical details of the Stages Power LR Powermeter

• cadence measurement via optimised acceleration sensors and integrated ring lasers
• recording of performance data on both sides, but independently of each other
• power range: 0 – 2500 watts
• cadence range: 20 – 220 rpm
• Active Temperature Compensation (ATC) as an automated process to determine consistent performance data under any environmental conditions
• individual and independent calibration of each Stages powermeter for maximum measurement accuracy (+/- 1.5 %)
• integrated LED display for visualisation of battery level and calibration result (no active connection to the app or bike computer required)
• improved Bluetooth and ANT+ antennas for a 6-fold increase in data transmission strength
• wireless Firmware updates
• compatible software: Stages Link, Training Peaks, Strava, Garmin Training Center, etc.
• battery life: over 175 hours (over 200 hours with one-sided use)
• water resistance: IPX7

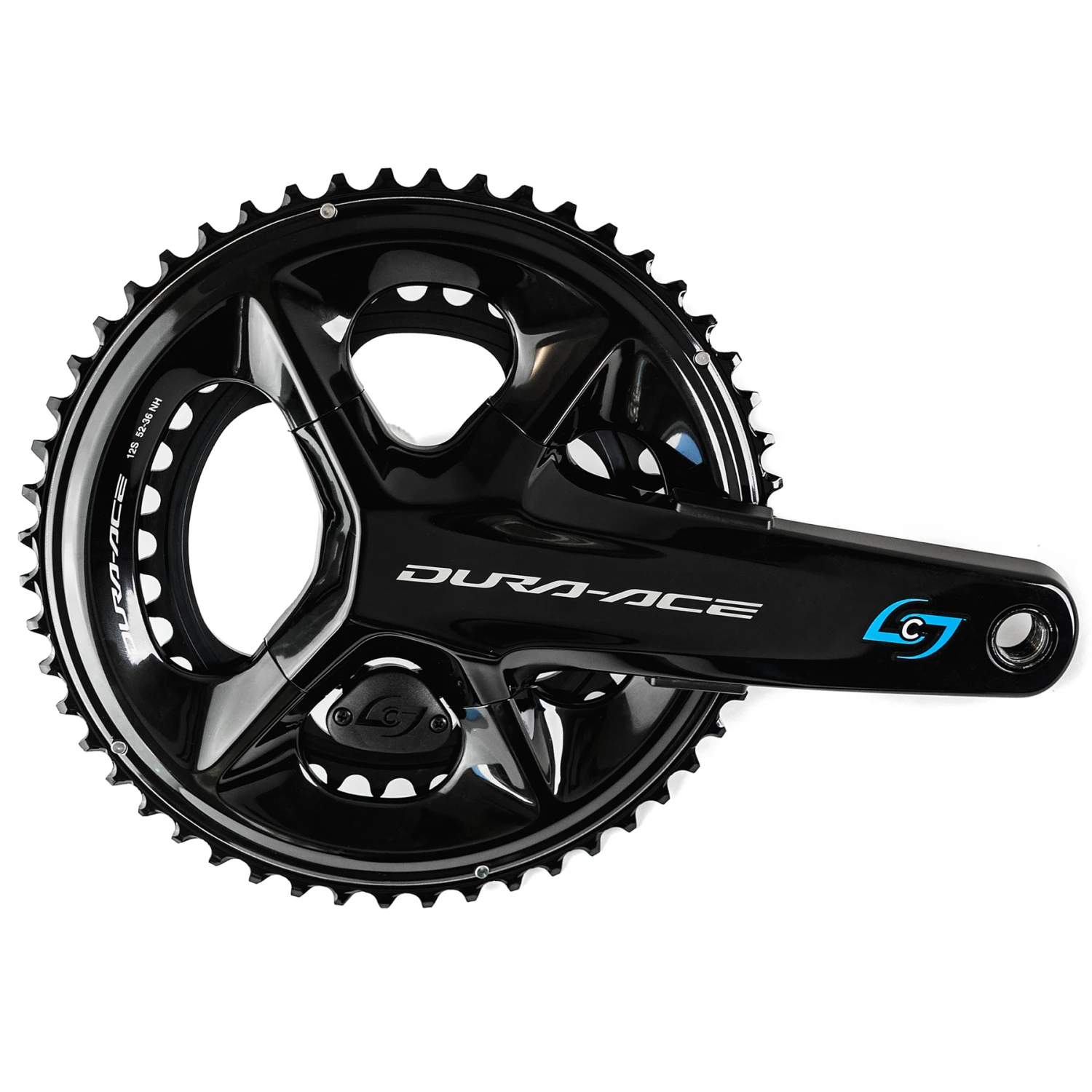

Shimano Dura Ace FC-R9200 crankset

The Shimano Dura Ace FC-R9200 crank performs two crucial tasks: It converts pedal power into propulsion and ensures extremely fast and precise shifting. Not only do the lightweight crank arms, manufactured using technology, contribute to this, but also the uniquely designed chainrings which feature a construction and ensure fast as well as smooth shifting. The result is responsive acceleration from any speed securing the 2×12-speed crankset an absolute top position.

Various crank arm lengths and chainrings with 50-34 to 54-40 teeth offer variability and an optimum gear ratio for every riding situation.

Hollowtech II

The guiding principle of Shimano’s Hollowtech II technology is the perfect balance between stiffness, stability, weight and rotational efficiency. The goal was to produce a crank that minimises the effort required for the drive and enables more efficient power transmission.

An exclusive forging process allows the production of extremely light crank arms that nevertheless guarantee maximum stiffness. The fixed connection of the right arm to the axle of the bottom bracket and its external bearing also serve an optimum relationship between stiffness and low weight.



crank arms, inner chainring: aluminium (anodized)
outer chainring: aluminium (anodized), carbon fiber reinforced polymer (CFRP)
axle: steel (plated)

approx. 685 g (170 mm | 50/34 teeth, without sensor)
approx. 692 g (170 mm | 52/36 teeth, without sensor)
approx. 714 g (170 mm | 54/40 teeth, without sensor)

approx. 35 g (Power LR Powermeter sensor)

crankset incl. integrated Powermeter sensors and batteries (2 CR2032 coin cells)
