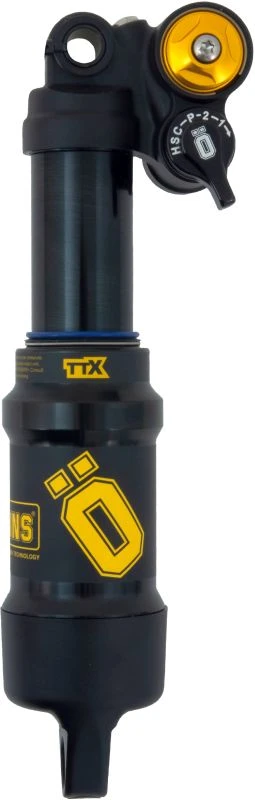

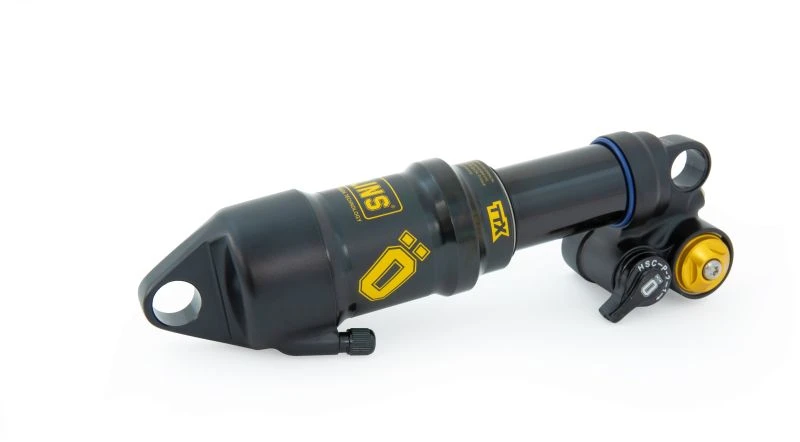

ÖHLINS TTX1 Air Universal Rear Shock – 190x45mm



ÖHLINS new rear shock.

A powerful and robust shock absorber, the TTX Air1 offers the same performance as the TTX2 Air but with a single can design, smaller progressive air chamber for bikes with linear rear frame geometry. A further feature of the TTX1Air is the new, more filigree end eye, which allows installation in many frames with slim designs. Due to the filigree design of the TTX1Air, it weighs 60g less than its TTX2Air counterpart. Specially developed wipers and lubricants keep friction at a consistently low level between service intervals.

The new TTX1Air combines the superior damping characteristics of the TTX system with a new air spring design. This combination delivers both improved performance and robustness. Öhlins has introduced the TTX concept to the MTB market and has become a brand in damping technology.
set. Changing the clicks on the high speed compression adjuster changes the effective area of the shims, not the preload of the shims as is usually the case. With this system a better adjustability of the shims is achieved.

The TTX1Air improves an already proven system in terms of damping performance and simplifies individual tuning. The metric design has increased the overlap of the slide bearings, minimising the negative influence of lateral forces. No matter if linear trail bike or e-mountain bike, the TTX1Air is the optimal choice due to its versatile application possibilities. Especially for riders who are looking for a light, filigree damper that can be individually adjusted to the preferences and riding style of the rider.

To maintain the damping performance, it is important to observe the service intervals. The 100 hour service can be carried out by the driver or an authorised service centre.

Features of ÖHLINS TTX1 Air Universal:

• Twin-Tube-Technology (TTX)
• Gas pressure system with expansion tank
• Aluminium, hard anodized
• Can be completely dismantled for maintenance and repairs
• 2 years warranty

Adjustability:

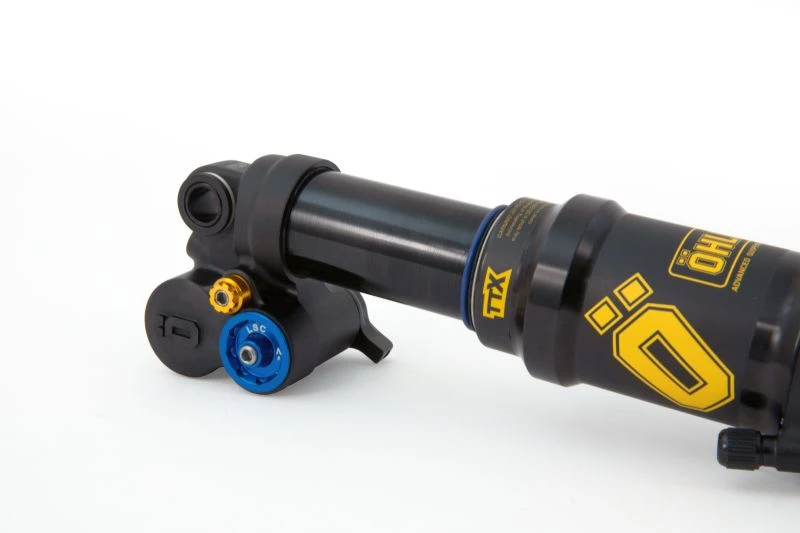

• 3-way adjustable high-speed compression damping incl. pedal mode
• 10-way adjustable low-speed compression damping
• 12-way adjustable rebound damping
• Spring rate adjustable by air pressure

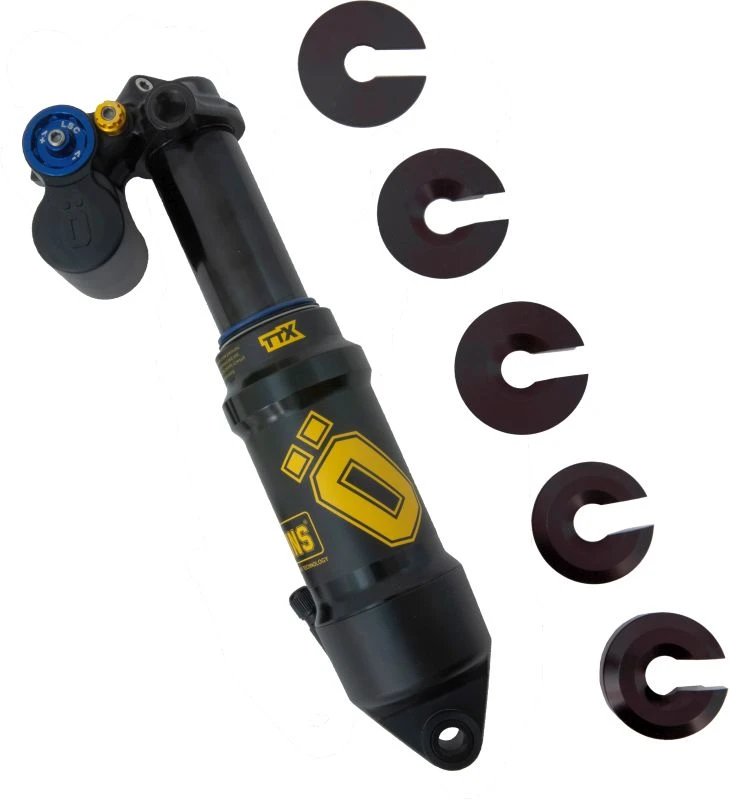

• Progression of the air spring

For the installation of universal shock absorbers to specific bicycle models mounting kits are available. They consist of bushings, spacers and x-rings and need to be ordered separately.

You are not sure what you need. The helps you to find the base setup for your bike and optimizes it for you.

Included in delivery: 1x TTX1 Air Universal rear shock incl. manual & mounting instruction
